Name: 2KW Fiber Laser Welding Machine with CCD Vision System
Brand: Olang
Price: 1 USD

Brand Name : Olang

Model Number : OL-O33

Certification : ISO

Place of Origin : Foshan City ,China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Unit/Per Month

Delivery Time : 15-30days

Packaging Details : Wooden Case Packing

observation system : CCD vision image

Control System : PLC

Cooling Method : Water Cooling

Laser Type : Fiber Laser

Fiber Length : 10m

Power Consumption : 2kW

Contact Now

closed-loop laser welding machine High Precision Energy-Efficient

Closed Structure: Provides enhanced safety by containing laser radiation.
High-Precision Welding: Uses laser technology for accurate, defect-free welds.
Automated Operation: Equipped with an automatic control system to improve production efficiency.
Eco-Friendly Design: Includes smoke and gas filtration systems to reduce emissions and pollution.
Wide Application: Suitable for precision welding of metals, plastics, and other materials

Product Featuer :

Model	OL-F-FW1000	OL-F-FW1500	OL-F-FW2000	OL-F-FW3000
Laser power	1000w	1500w	2000w	3000w
laser wavelength	1064mm	1064mm	1064mm	1064mm
Max single pulse energy	60J	60J	60J	60J
wedling depth	0.1-0.5mm	0.1-0.7mm	0.1-1.0mm	0.1-1.5mm
pulse width	0.1-20ms continuously adjustable	0.1-20ms continuously adjustable	0.1-20ms continuously adjustable	0.1-20ms continuously adjustable
observation system	CCD vision imaging	CCD vision imaging	CCD vision imaging	CCD vision imaging
Working table size	200200mm-12001200mm	200200mm-12001200mm	200200mm-12001200mm	200200mm-12001200mm
Electricity demand	AC220V/380V/50HZ	three-phase power380V/50HZ	three-phase power380V/50HZ	three-phase power380V/50HZ
Power	6kw	12kw	16kw	18kw
cooling system	water cooling system	water cooling system	water cooling system	water cooling system
Environmental Requirements	No interference, no vibration, maintain ventilation	No interference, no vibration, maintain ventilation	No interference, no vibration, maintain ventilation	No interference, no vibration, maintain ventilation
Operating temperature	0-40℃ 10-75%	0-40℃ 10-75%	0-40℃ 10-75%	0-40℃ 10-75%
Dimension	12007001030mm/ 13506501100mm	12007001030mm/ 13506501100mm	12007001030mm/ 13506501100mm	12007001030mm/ 13506501100mm
Consumables	purified water , Argon	purified water , Argon	purified water , Argon	purified water , Argon
Adustment frequency	1-100khz	1-100khz	1-100khz	1-100khz

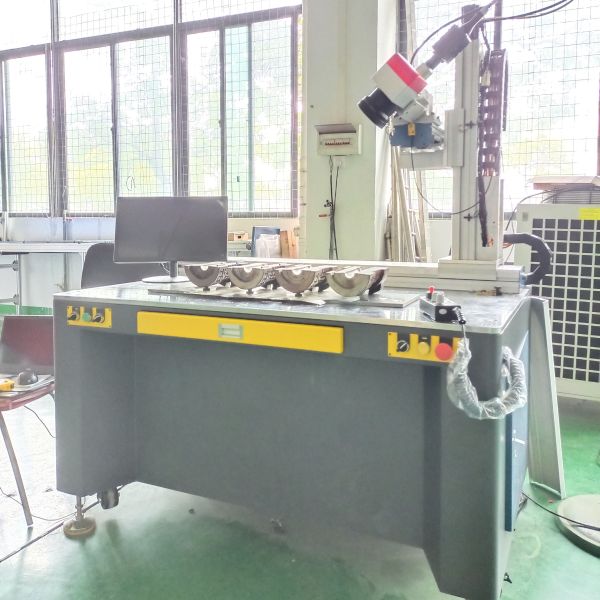

2KW Fiber Laser Welding Machine with CCD Vision System

Packing
2KW Fiber Laser Welding Machine with CCD Vision System

Factory workshop

Certificate

Exhibition
